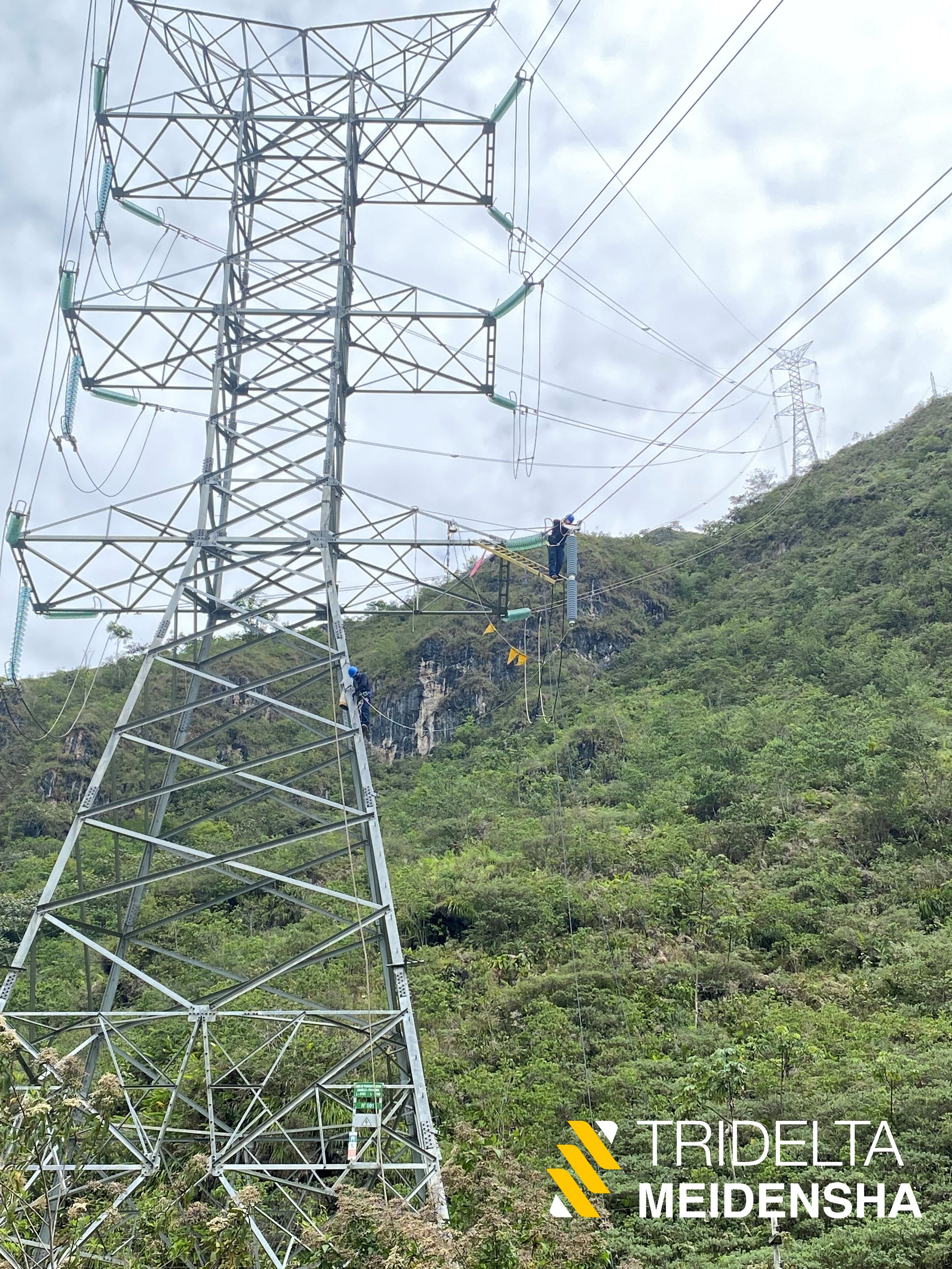

HY Surge arrestor in TLA Sweden 145 kV.JPG

Tridelta Meidensha is a joint venture company formed by Tridelta and Meidensha Corporation to produce and supply high-quality surge arresters and other electrical equipment for power systems.

Tridelta:
A Germany-based company with a long history of manufacturing electrical and power system equipment, especially surge arresters. They have a reputation for high reliability and quality in their products.

Meidensha Corporation:
A Japanese company that specializes in producing electrical equipment, including transformers, circuit breakers, varistor (MOV) blocks and power system solutions. Meidensha has a global presence and is well known for innovation and quality in the power industry.

Product Range

Surge arresters are electrical devices designed to protect power systems and electrical equipment from high-voltage surges, such as those caused by lightning strikes, switching operations, or other transient overvoltages. They work by safely diverting excessive electrical energy to the ground, thereby preventing damage to equipment like transformers, circuit breakers, and other critical infrastructure.

During normal operation, surge arresters remain inactive and allow the system to function without interference. When a high-voltage surge occurs, the arrester activates, offering a low-resistance path for the excess voltage to safely discharge to the ground. Once the surge subsides, the arrester returns to its high-resistance state, isolating itself from the system and resuming normal operation.

Surge arresters prevent damage to critical power system components by controlling transient overvoltages, enhance the reliability and lifespan of the electrical network by minimizing the effects of surges, reduce downtime and repair costs associated with equipment failure caused by surges and protect personnel and infrastructure from hazards caused by electrical surges.

Tridelta Meidensha offers high voltage surge arresters, medium voltage surge arresters and surge arrestor monitoring to the Canadian market.

High Voltage
surge arresters

>> TO HV products >>

Tridelta Meidensha offers a comprehensive range of surge arresters for high voltage applications up to 800 kV, including the reliable SB type arrestors with porcelain housing, and the SBKC and SBKT type arrestors featuring silicone housing.

>> TO HV products >>

Medium voltage
surge arresters

>> To MV Products >>

Tridelta Meidensha’s SBKW type surge arresters in silicone housing offer protection up to 60 kV for transformers, switchgear and cable terminations in enclosed spaces or in outdoor applications.

>> TO MV Products >>

Surge arrester
monitoring

>> To Monitoring >>

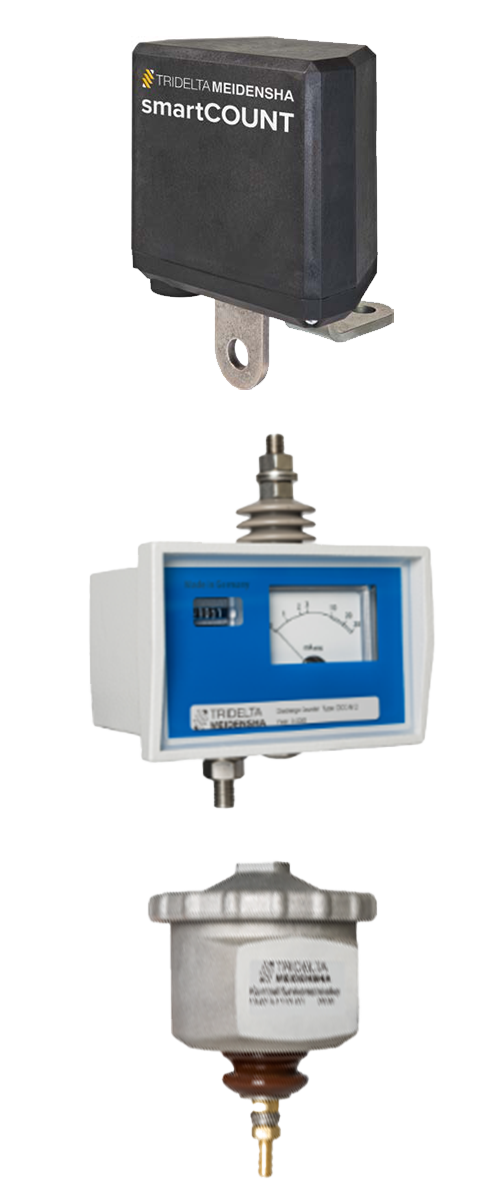

Tridelta Meidensha not only provides a variety of surge arresters but also offers a selection of monitoring devices. The DCC series surge counters—available with or without leakage current measurement—along with control spark gaps, enable the early detection of potential faults.

>> to Monitoring >>

About the company

Tridelta Meidnesha has been manufacturing electrical components since 1889.

Tridelta Meidensha manufactures at its main facility in Hermsdorf, Germany, within a 107,000 square foot factory, 5,000 square foot warehouse and dedicated 7,000 square foot testing lab.

Tridelta Meidensha delivers surge arresters to over 120 countries, including Canada.

Certifications

Tridelta Meidensha is certified to DIN ISO EN 9001 and 14001.

Manufacturing is extensively routine-tested and is in compliance with IEC 60099-4 and IEEE C62.11

Testing capacities

Tridelta Meidensha has a modern and efficient high voltage laboratory dedicated to surge arrester activities which can type test according to IEC 60099-4 and IEEE C62.11. The Tridelta Meidensha development processes are certified to ISO 9001.

The Tridelta Meidensha laboratory is equipped with:

Impulse generator up to 1,2 MW
Power frequency transformer 600 kV
High current impulse generator 150 kA
Long duration current impulse generator for line discharge class 1-5
Test facilities 5.000 h weather ageing test
Climate testing laboratory with capability of -40°C - +100°C
Mechanical bending and tensile test machine with up to 30.000 Nm bending and up to 50.000 N tensile strength

Differentiators

Tridelta Meidensha combines German engineering expertise and Japanese innovation to supply robust solutions for global power grids. Their products are widely used in utility networks and industrial power systems to improve resilience and protect critical infrastructure from electrical faults.

Their surge arresters and related products are trusted by utilities worldwide due to their high quality, reliability, and performance in harsh operating conditions.

Tridelta Meidensha offers:

Comprehensive product portfolio
Stable operation and lowest failure rates ensuring a long service life
Best protection levels and bending strength
Efficiency and the highest quality in manufacturing
Successfully deployed in coastal and desert regions, areas with high industrial air pollution, heavy windloads, seismic zones, and other locations demanding special protection

Metal oxide arresters are designed for system voltages ranging from 1 kV to 800 kV and includes models for specific customer applications. These arresters are successfully deployed in over 120 countries worldwide and have demonstrated their effectiveness even in extreme climatic conditions.
