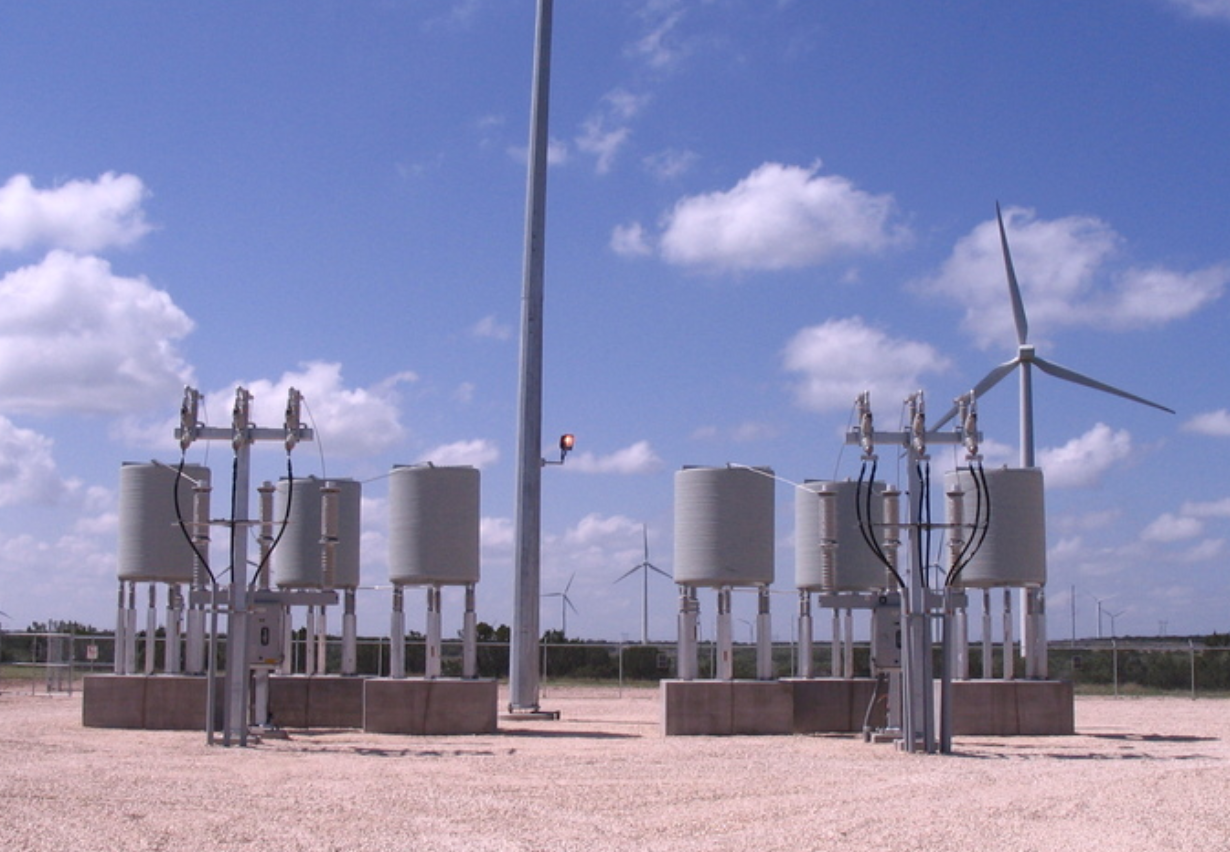

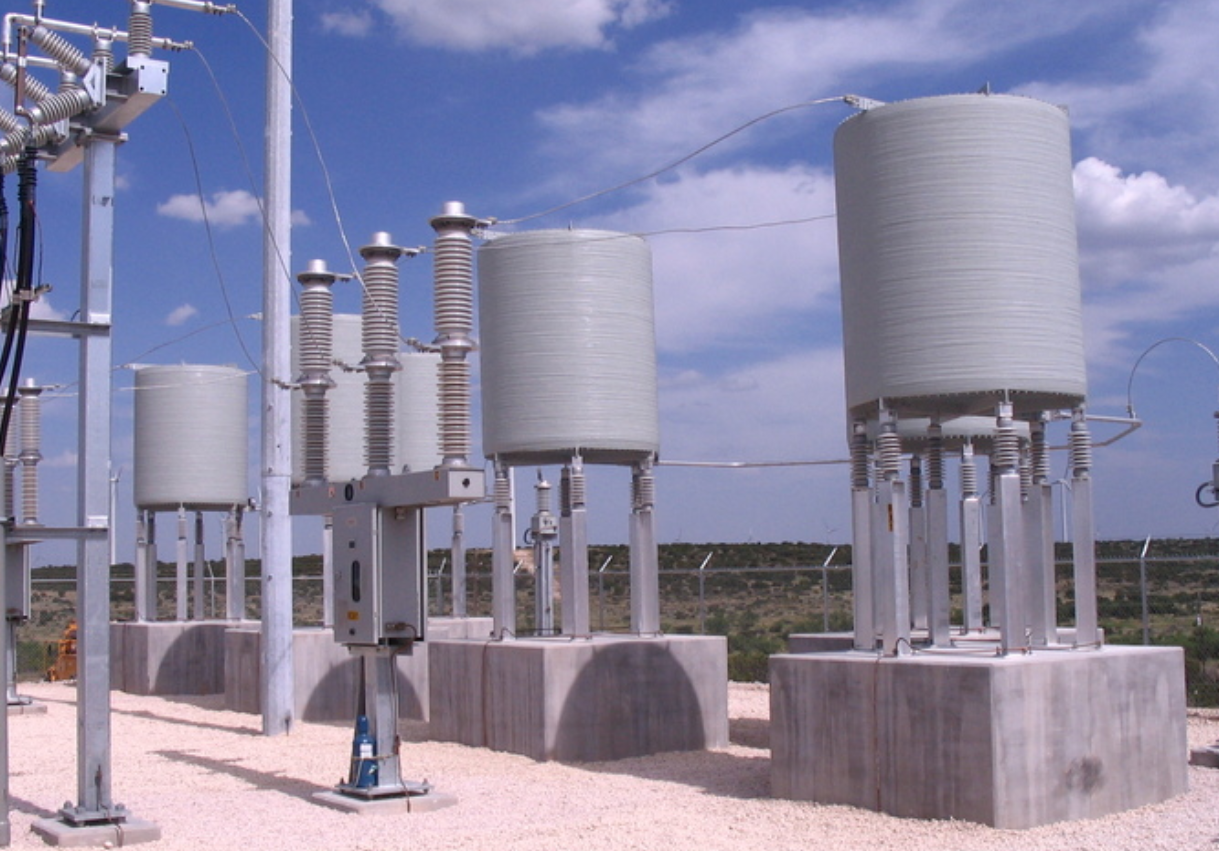

Southern States RLSwitcher®

Tertiary Reactor Switching Device 15.5 kV – 38 kV

Switch Tertiary Shunt Reactors with confidence and certainty!

Switching shunt reactors located on the transformer tertiary can impose a severe duty on the connected system, switching device, and shunt reactor. Due to the relatively small inductive current, the interrupting device attempts to clear at a forced current zero causing current chopping. If the interrupter’s contacts have not separated enough to sustain the system voltage, a re-ignition of the arc will occur. These high magnitude and high frequency re-ignitions can shorten the life of the reactor and the switching device. The Southern States’ RLSwitcher®, with its patented interrupter design, minimizes the probability and magnitude of these harmful re-ignitions.

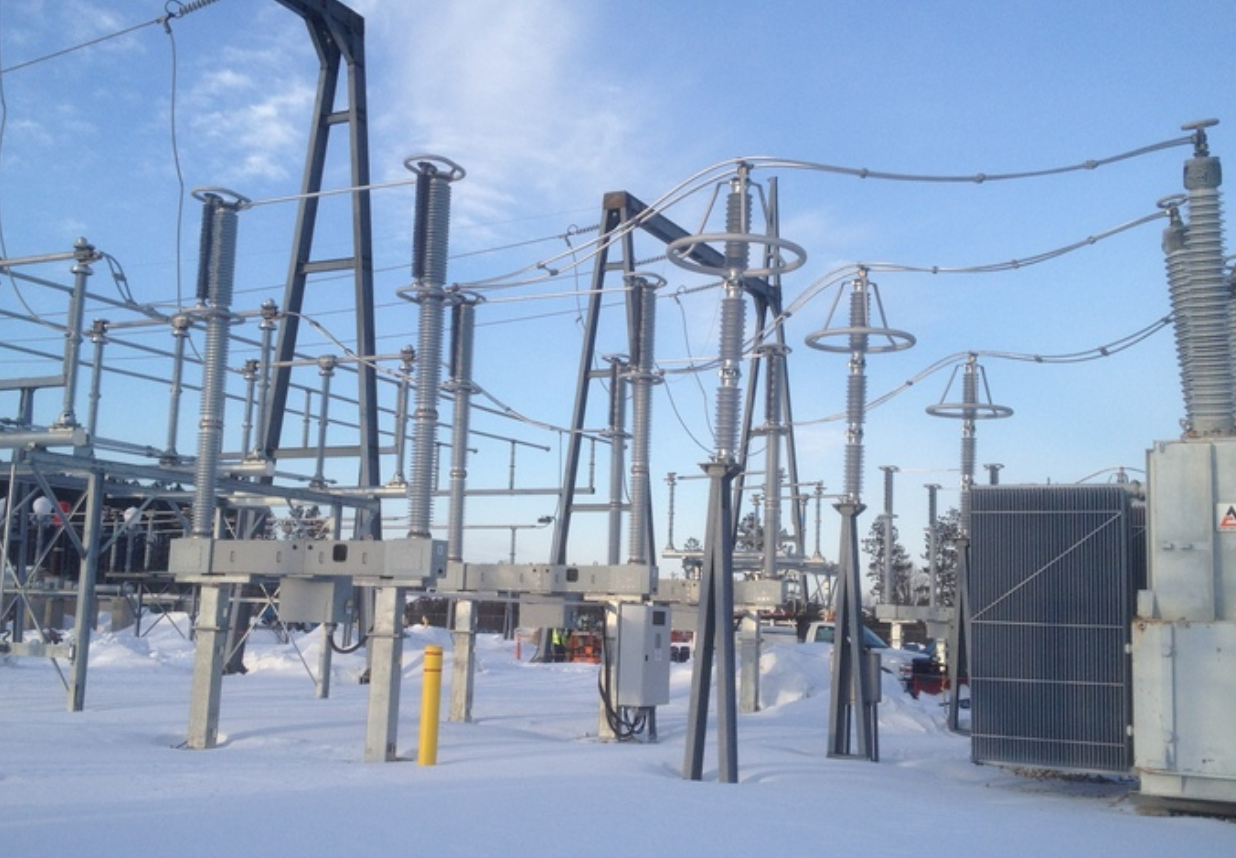

Southern States RLSwitcher® in Nova Scotia

Southern States RLSwitcher® in Nova Scotia


BENEFITS

  • Patented Interrupter minimizes probability and magnitude of re-ignitions

  • Reduced Turn-to-Turn voltage stress on reactor windings

  • Simplified design improves reliability

  • Local and remote gas monitoring system

  • Compact design can fit in tight spaces

  • High creep composite insulators

SPECIFICATIONS

  • Maximum Voltage Ratings: 15.5 kV – 38 kV

  • Reactor Switching Current Rating: 15 kV – 3000 A • 38 kV – 1600 A

  • Short Time Withstand Current: 40 kA / 2 sec

  • Peak Withstand Current: 108 kA

  • Short Circuit Making Current: 40 kA rms sym

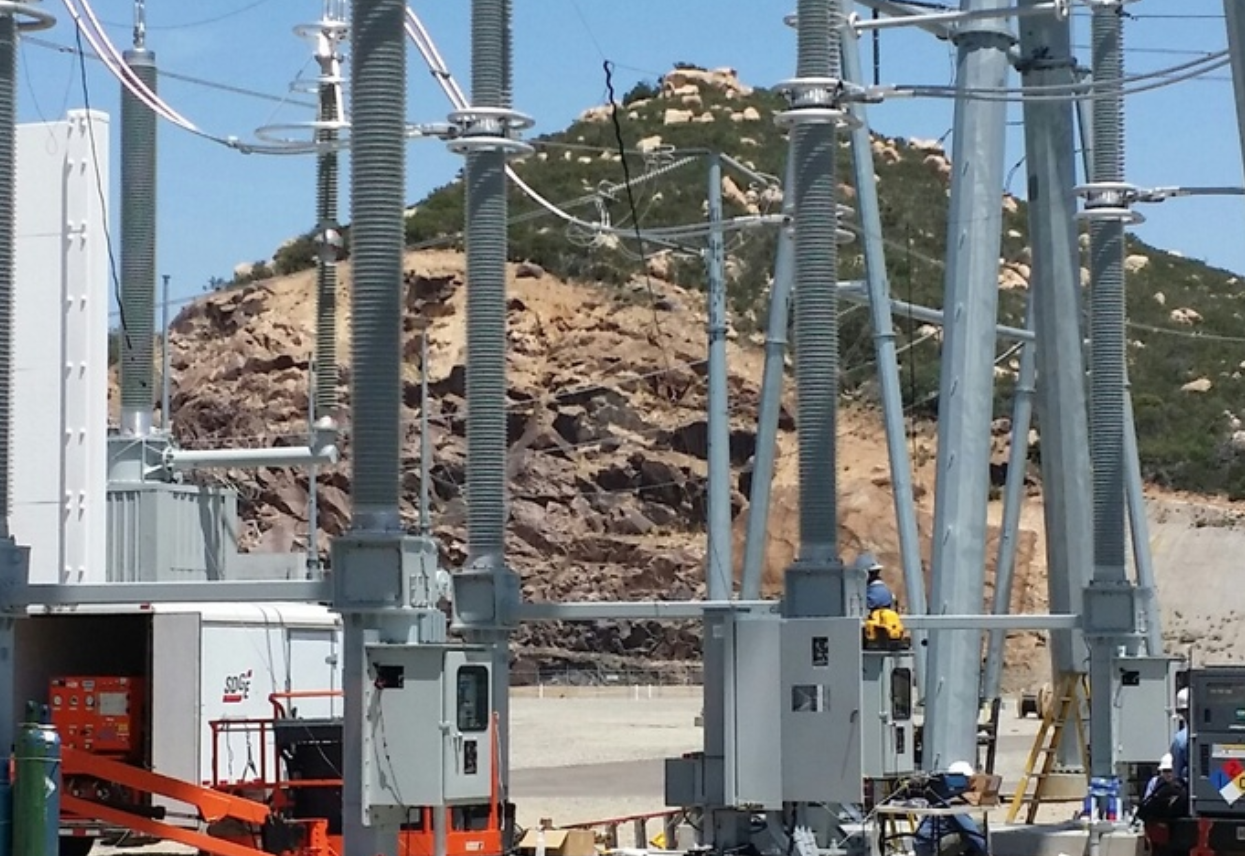

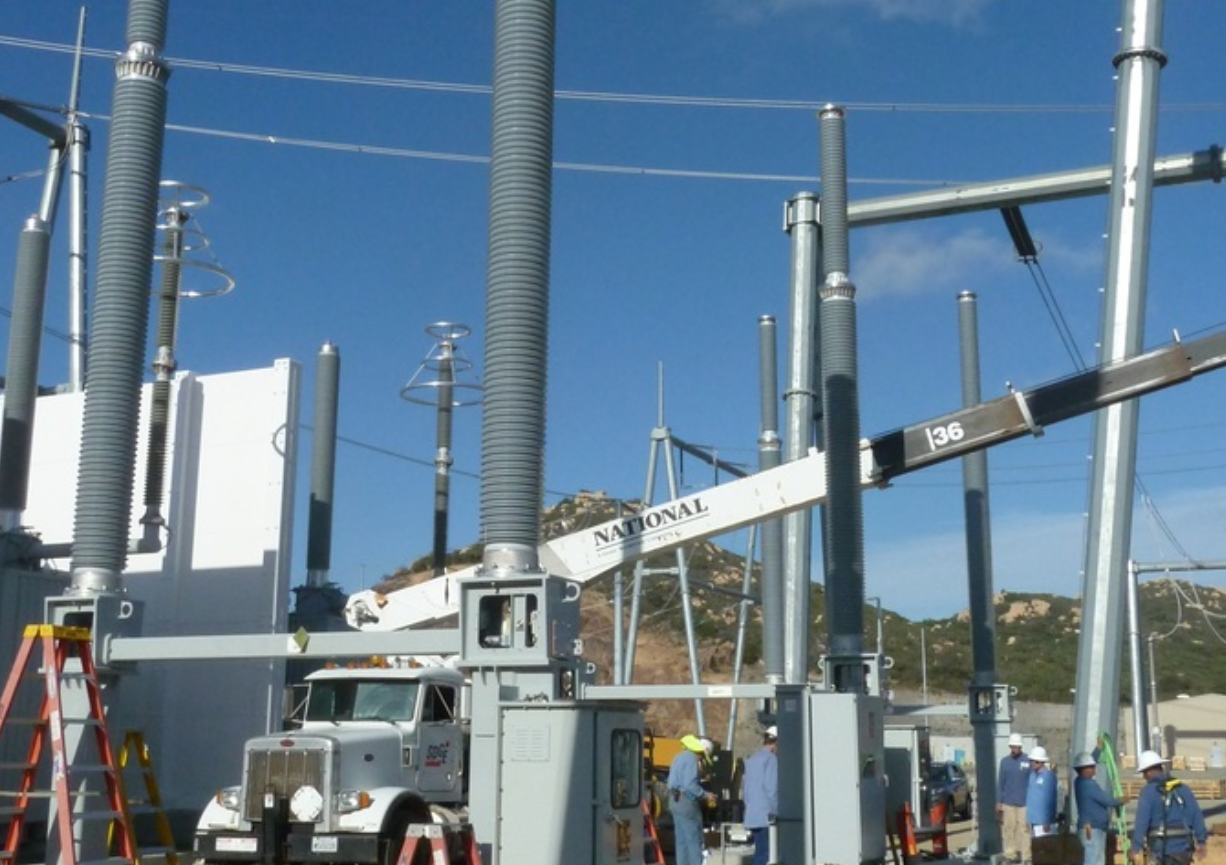

362kV RLSwitcher ITC Lingston

362kV RLSwitcher ITC Lingston


KEY ADVANTAGES

  • Very low probability of re-ignitions, 10X less than with conventional interrupters

  • Makes and breaks circuit in SF6

  • Single mechanism spring-open, spring-close provides reliable long-life performance

  • Ships fully assembled to minimize installation time

  • Local visual indication of gas pressure provided by color coded temperature compensated gas gauge

  • Common gas system with gas density switch with low pressure alarm and low pressure lockout for remote status monitoring

  • Suitable for use where pollution level requirement is “very heavy”

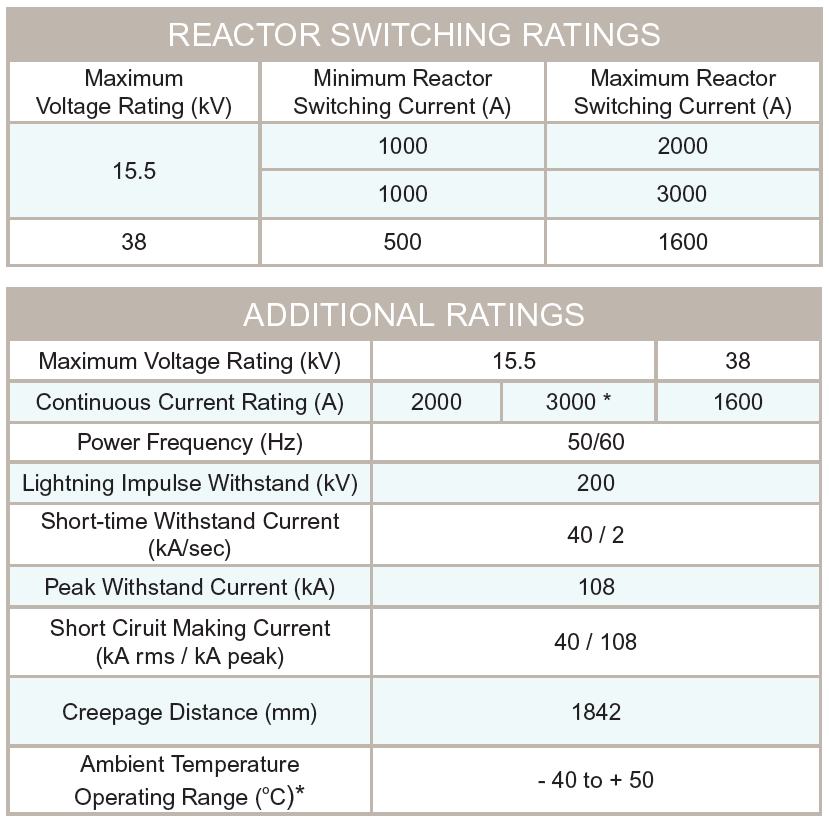

RATINGS AND DRAWINGS
